CPU Model: Rockchip RK3568B2
Number of Cores: Quad-core ARM Cortex-A55
Frequency: 4 x Cortex-A55 up to 2.0GHz
GPU Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile
VPU 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
NPU Support 0.8T
Memory RAM: RAM: 2GB/4GB LPDDR4X
Storage MicroSD Slot: MicroSD x1, support UHS-I, for external storage up to 128GB
Flash: 8GB/16GB eMMC 5.1 Flash
PCIe: M.2 M-Key, PCIe2.0 x1, support NVME, PCIe WiFi etc Onboard M3 PCB nut for mounting M.2 2280 module

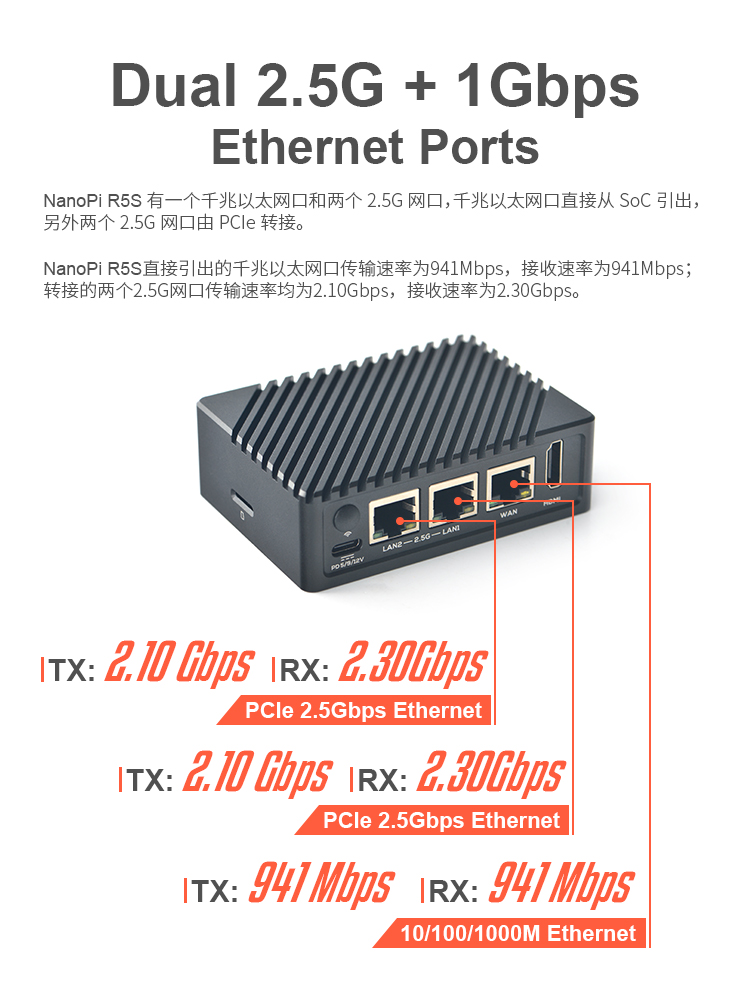

Connectivity Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip
Video Output HDMI: support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support up to 1080p@120Hz and 4096x2304@60Hz
support 3-D video formats
USB USB 3.0 Host x1: USB Type A
USB-C x1: Power input(5V/9V/12V), support PD
Pin-header GPIO: 12-pin 0.5mm FPC connector
up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
SD/MMC/SDIO/I2S: 2x8-pin 1.27mm connector
Compatible with SDIO3.0 protocol
Compatible with SD3.0, MMC ver4.51
4bits data bus widths
1x I2S with 2x SDO and 3x SDI
Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps

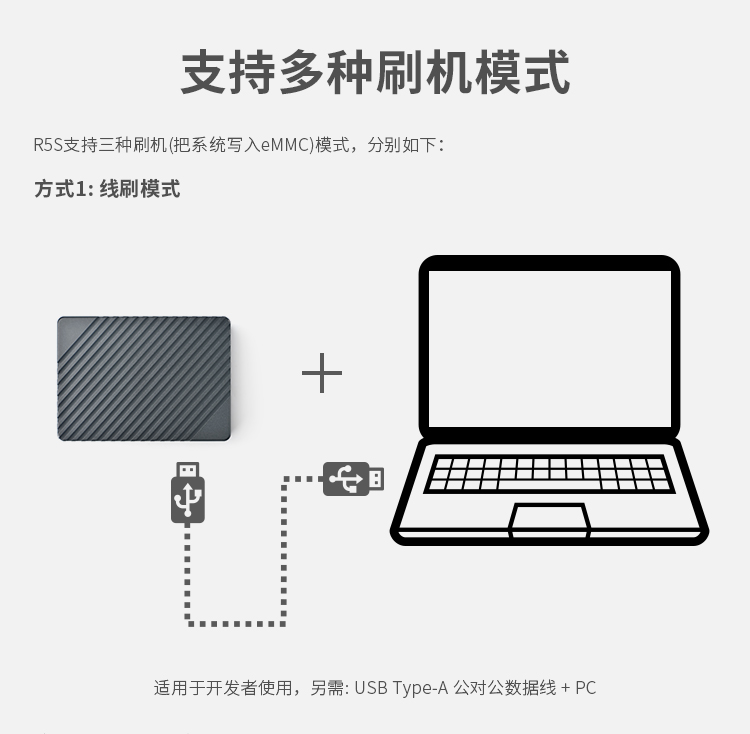

Button MASK Button x1 for eMMC update
LED PWR LED(Red) x1
WAN LED(Green) x1
LAN1 LED(Green) x1
LAN2 LED(Green) x1
Others RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Fan Connector(ZH1.5-2A) x1, 5V
Working Temperature: 0℃ to 70℃
Power USB-C, support PD, 5V/9V/12V input
PCB 8 Layer
Dimension 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case)
Weight 57.5g(without Case) / 260g(with Case)
